Specifications

Beacon Flasher
         Diameter: 12 inch (amber or red)
         Beacon Activation: Activated by cyclists
         Luminous Intensity: > 4000 cd
         Visual Distance: > 600 ft
         Operation Time: 20 rainy days after fully charged
         Enclosure: NEMA Type 3R+, IP55
         Material: UV-stabilized polycarbonate

Solar Panel & Battery
         Solar Panel Power: 25W
         Battery Capacity: 20Ah

Cyclist Detector
         Sensor: PIR motion sensor, FCC compliant
         Sensing Range: 30ft (sensor to cyclist)
         Wireless Distance: 1,500ft (sensor to beacon)
           Sensor Power: Solar

Download
          Product brochure can be downloaded here.













The Cyclists riding on bike trails have two distinct features: (1) they often go fast , and (2) they often don’t push buttons at trail crossings. Therefore, a cyclist safety system with automated cyclist detection and signal actuation is preferred. Because of the high speed, this safety system also requires the early detection of cyclists, i.e., detecting cyclists when they are 50-100ft from the crossing.

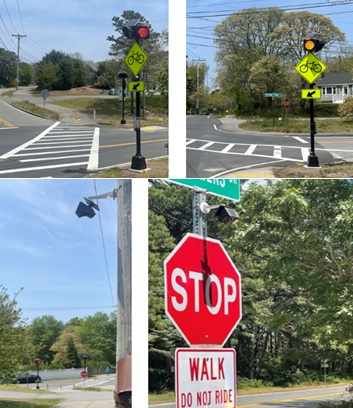

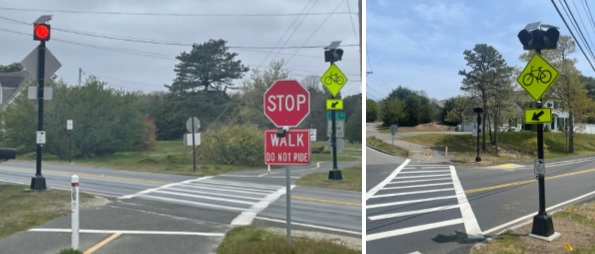

Migma Systems has developed an innovative product, Distributed Sensing Flashing Beacon (DSFB). The sensor receiver is embedded inside the housing of flasher, drawing power from solar panel or solar battery. Using solar-powered detector, it flashes only when cyclists who are approaching to the crossing are detected. Otherwise, it is off! The sensor response time is less than 1 second. Moreover the detector and beacon flasher can be installed on different poles or posts.

Some vehicle drivers can be easily distracted by devices such as smart phones while driving. These distractions, caused by the use of various devices, are well documented. Migma’s Distributed Sensing Flashing Beacon (DSFB) can make a positive difference! (USPTO Patent: 10,950,122)
