Specifications

Radar Frequency: 24.125GHz
LED Brightness: > 6000 cd (auto-adjusted via photocell)
Visible Distance: 300 ft
Viewing Angle: ± 60°
Accuracy: ± 1 MPH
Enclosure Protection: IP65 (waterproof)
Material: Powder coated aluminum & PVC
Operating Temp: -40 °C — +70 °C
Operating Humidity: 5% — 95%
Operating Time: 7 rainy days after fully charged

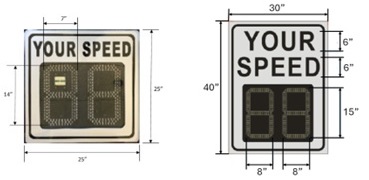

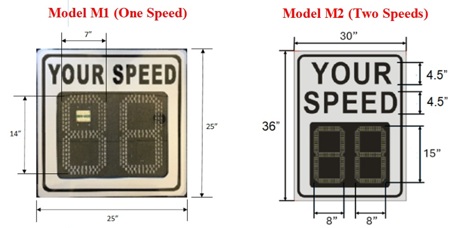

Display Dimension: 14'' H, 2 digits
Frame Dimension: 24'' H x 24'' W x 3.5'' D
Solar Panel Power: Dual, 50W and 30W
Battery Capacity: Dual, 20aH each
Data Recording: Yes and data in Excel format
Data Recording: Yes over MigmaNet for free

 Product cutsheet can be downloaded here

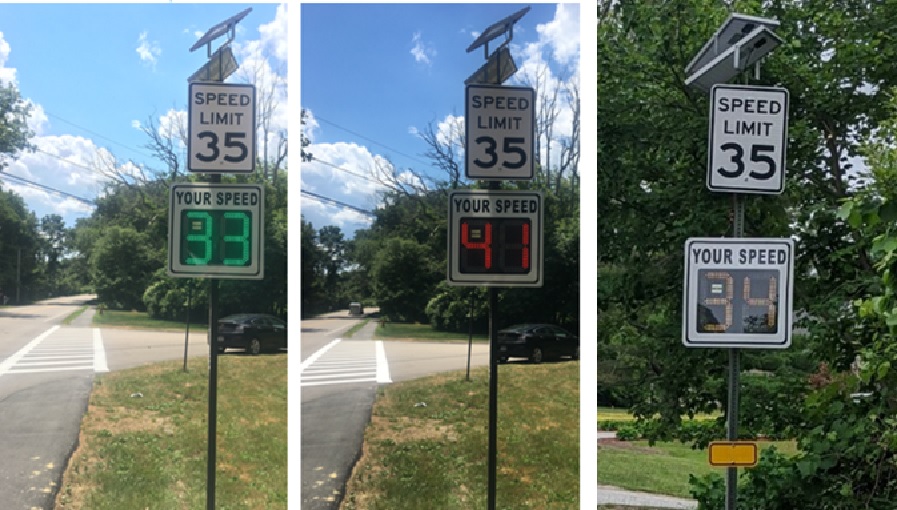

Migma Systems has developed a solar radar speed feedback sign, namely, RadarSign, using modular components. Instead of using one large battery and one large solar panel, which often requires special pole for mounting, Migma RadarSign utilizes dual solar panels and dual batteries, which are light in weight. Moreover, the entire unit can be mounted to a 2” square post, reducing the cost of expensive poles. Each of dual solar panels can also be adjusted independently to make it possible to charge the batteries both in the morning and in the afternoon, which is hard to do for system with single solar panel.

Migma RadarSign can also record the vehicle data which can be downloaded wirelessly to a laptop over MigmaNet which is totally free for customer to use. For each vehicle passing through, the following data items are recorded:

- timestamp of the moment vehicle is sensed by radar sign
- vehicle counts of vehicles passing the radar sign
- lowest speed of the passing vehicle in radar sensing range
- highest speed of the passing vehicle in radar sensing range

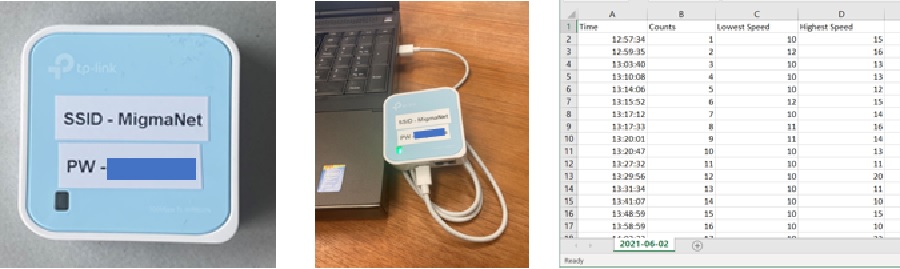

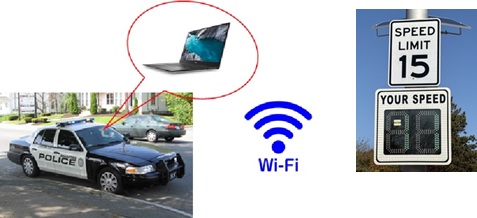

Data in one day are recorded in an Excel file which is stored in an onboard memory card. A portable wireless USB WiFi router comes with this radar speed feedback sign, which can be used to wirelessly connect the laptop in a vehicle parking nearby with the radar speed sign. A popular freeware is used to wirelessly download the vehicle data to the laptop.
