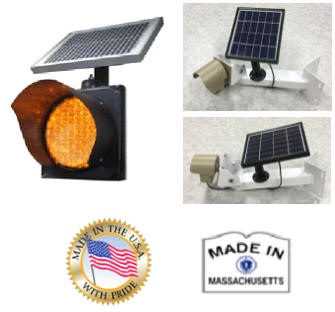

Beacon Flasher
              ∆ Diameter 12''
            ∆ LED Quantity 138
            ∆ Luminous Intensity ≥ 4000 cd
            ∆ LED Lifetime 5.5 Years
            ∆ Visual Distance ≥ 1600 ft
            ∆ Operating Time 10 rainy days after fully charged
            ∆ Dimension 15''x5''x14''
            ∆ Weight 14 lb.
            ∆ Enclosure Protection IP65
            ∆ Material UV-stabilized polycarbonate
            ∆ Flashing Mode Vehicle-activated or continuous

Solar Panel
              ∆ Solar Panel Power 10 W
            ∆ Battery Capacity 12 VDC & 7 aH lead-acid battery
            ∆ Solar Panel Size 9''x11''

Vehicle Detector
              ∆ Sensor PIR motion sensor
            ∆ Sensing Range 30 ft (sensor to vehicle)
            ∆ Comm Distance 1500 ft (sensor to beacon flasher)
            ∆ Sensor Quantity Up to 4 sensors simultaneously
            ∆ Sensor Power 3.5W solar panel and 18650 Li-battery









Free Downloads

Please download cutsheet here.
Please download timing configuration here.
Please download installation guide here.







Various studies have indicated that the continuously flashing beacons do not necessarily attract driver’s attention because they are always on and drivers get used to them. In addition, they flash 24/7, day and night, even when there are no vehicles on the streets, which could introduce the visual noises to the residents living nearby. For some applications, it is better to have flashing beacons activated only by approaching vehicles.

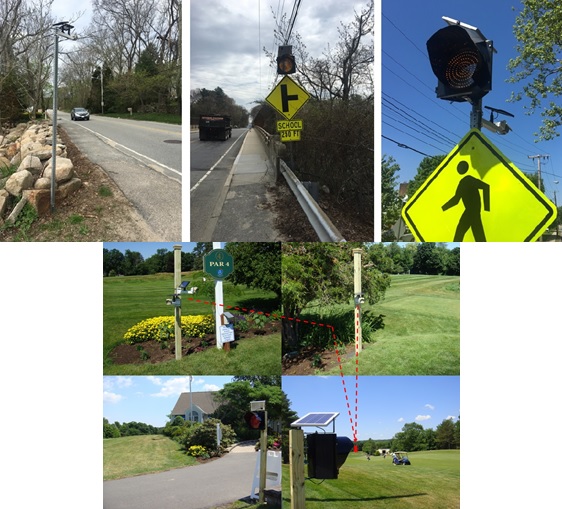

Migma Systems has developed an alternative product, Distributed Sensing Flashing Beacon (DSFB). The sensor receiver is embedded inside the housing of flasher, drawing power from solar panel or solar battery. Using solar-powered vehicle detector, it flashes only when vehicles are detected within certain distance (up to 1500 ft) to the flasher. Otherwise, it is off! If preferred, it can also be configured to flash continuously simply by flipping a switch. It is economical, solar-powered, and can be installed in few hours.

Some vehicle drivers can be easily distracted by devices such as smart phones while driving. These distractions, caused by their devices, are well documented, rising cause of pedestrian and/or vehicle accidents and sometimes fatalities. Migma Distributed Sensing Flashing Beacon can make a difference! (Patent pending for DSFB.)

                      Check out video at YouTube

                        Purchase at Amazon OR
            Contact Migma to Have 15% Discount
