It utilizes field-proven technologies for pedestrian detection and offers advanced features.

  Analytical video cueing and 3D pattern recognition

  Pedestrian detection at both day and night
  Operate under any weather conditions
  Configurable pedestrian detection zone

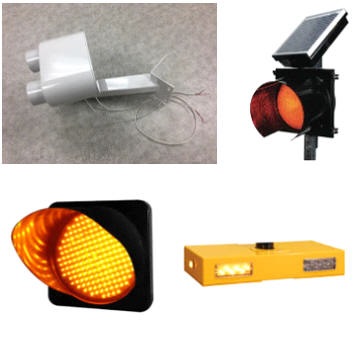

  Interface with beacon flasher through relay contact

  Detection coordination at both sides of crosswalk

  ~100% detection rate and negligible false calls per day

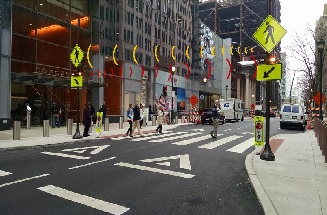

MigmaMidblock^TM Wireless is an outdoor passive pedestrian detector at the midblock crossings for automated beacon flasher actuation to alert approaching vehicle drivers about the pedestrians who are about to enter the crosswalks. It eliminates the need of underground conduit to coordinate detections at both sides of midblock crossings.

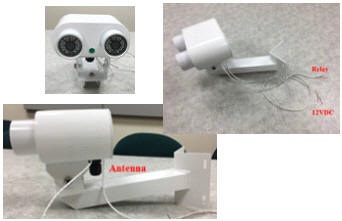

  High resolution IR LED stereo camera for day and night

  High performance single board computer (SBC)

  Remote view, configuration and diagnosis wirelessly

  No cabinet and underground conduit required

  Directional detection to avoid unnecessary detections

  Wireless communication through hotspot, no router required

Specification

  Image Sensor: 1/3" Sony CCD Chip
  Camera Resolution: 700 TV lines
  Camera Mounting Height: 12 ~ 18 ft
 Activation Time: ~1 second (adjustable)
  IR Range: 100 ft (~30 m) in total darkness
 S/N Ratio: 48 dB
  Input Power: 12VDC
  Operating Temperature: -22°F ~ +158°F (-30 °C ~ +70 °C)
  Operating Humidity: 0% ~ 96%

  Operating Environment: All weather, day and night
  Wireless Range: ~300 ft
  Configuration Tool: Laptop using VNC

Download

  Product installation user guide can be downloaded here.

  Product configuration user guide can be downloaded here.

  Product cutsheet can be downloaded here.
