Specifications

     System Operation
           Flasher Diameter: 12"
           LED Quantity: 138
           Luminous Intensity: ≥ 4000 cd
           LED Lifetime: 5.5 years
           Visual Distance: ≥ 1600 ft
           Operating Time: 10 rainy days after fully charged
           Battery Housing: 15'' H x 14’’ W x 5''
           Weight: 14 lb.
           Enclosure Protection: IP65
             Material: UV-stabilized polycarbonate
           Flashing Mode: Continuous or pedestrian-activated

     Solar Panel
           Solar Panel Power: 10 W
           Battery Capacity: 12 VDC & 7 aH lead-acid battery
           Solar Panel Size: 9' 'x 11''

     Detector
           Sensor: PIR motion sensor
           Sensing Range: 30 ft (sensor to pedestrian)
           Comm Distance: 1500 ft (sensor to beacon)
           Sensor Quantity: 7 sensors simultaneously
           Sensor Power: Solar panel and 18650 Li-battery

     Download
            Product cutsheets can be downloaded here.













The continuously flashing beacons may not necessarily attract driver’s attention because they are always on and drivers get used to them already. In addition, they flash 24/7, day and night, even when there are no vehicles or pedestrians on the streets, which might also introduce the visual noises to the residents living nearby.

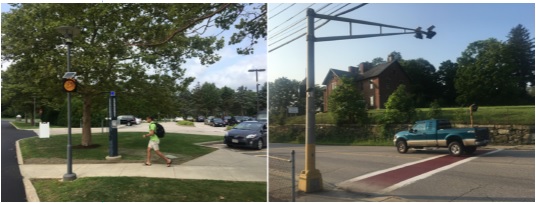

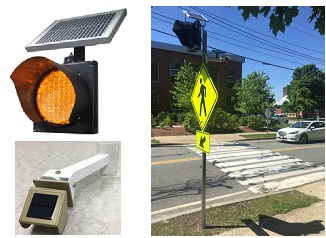

Migma Systems has developed an alternative product, Distributed Sensing Flashing Beacon (DSFB) Model P, where P stands for pedestrian. The sensor receiver is embedded inside the housing of flasher, drawing power from solar panel or solar battery. Using solar-powered detector, it flashes only when pedestrians who are waiting at midblock curb are detected. Otherwise, it is off! The sensor response time is about 1 second. Moreover the detector and beacon flasher can be installed on different poles or posts.









Some vehicle drivers can be easily distracted by devices such as smart phones while driving. These distractions, caused by their devices, are well documented, rising cause of pedestrian and/or vehicle accidents and sometimes fatalities. Migma Distributed Sensing Flashing Beacon can make a difference!
